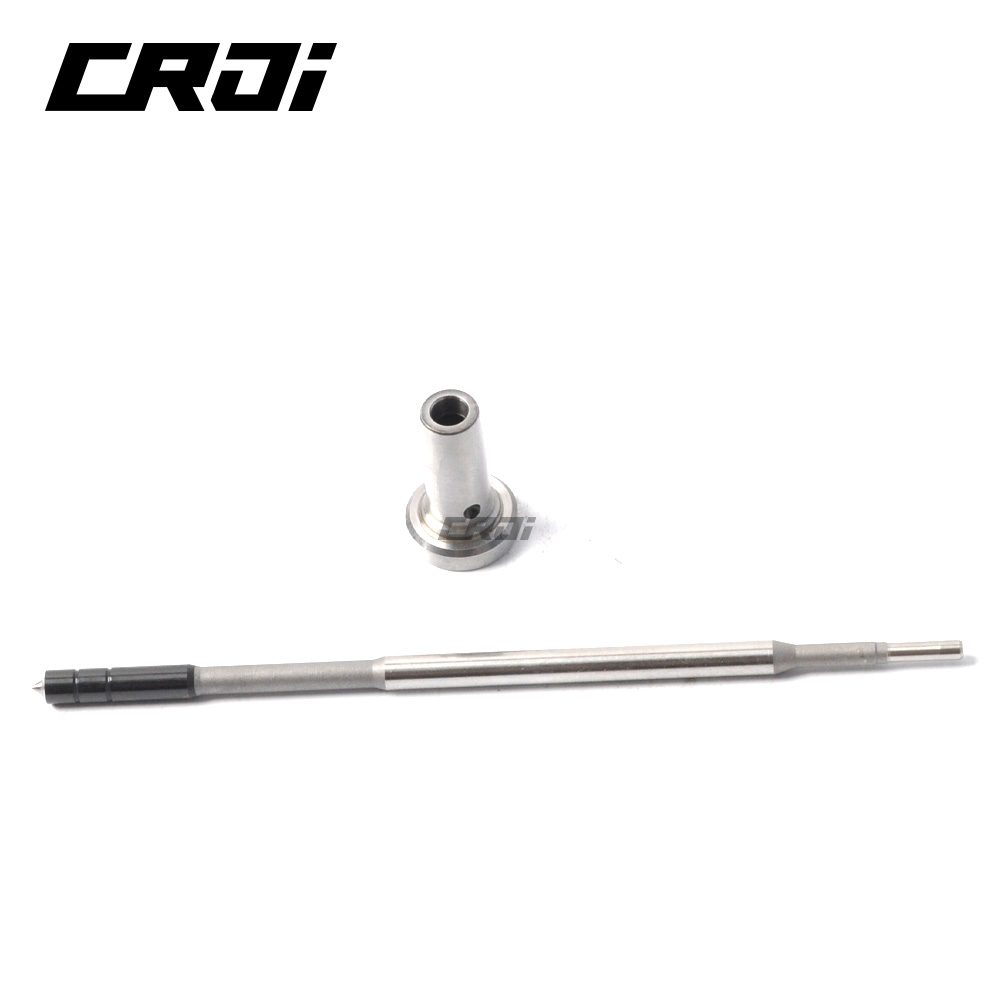

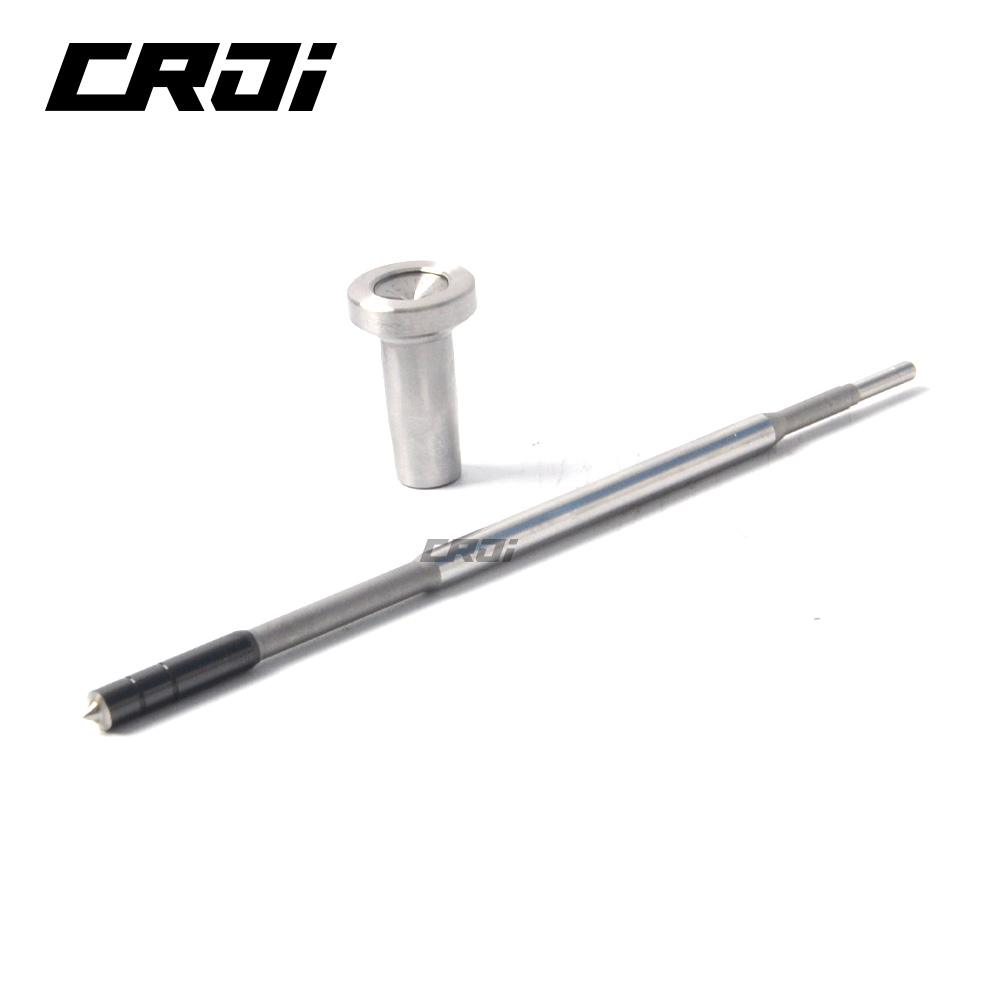

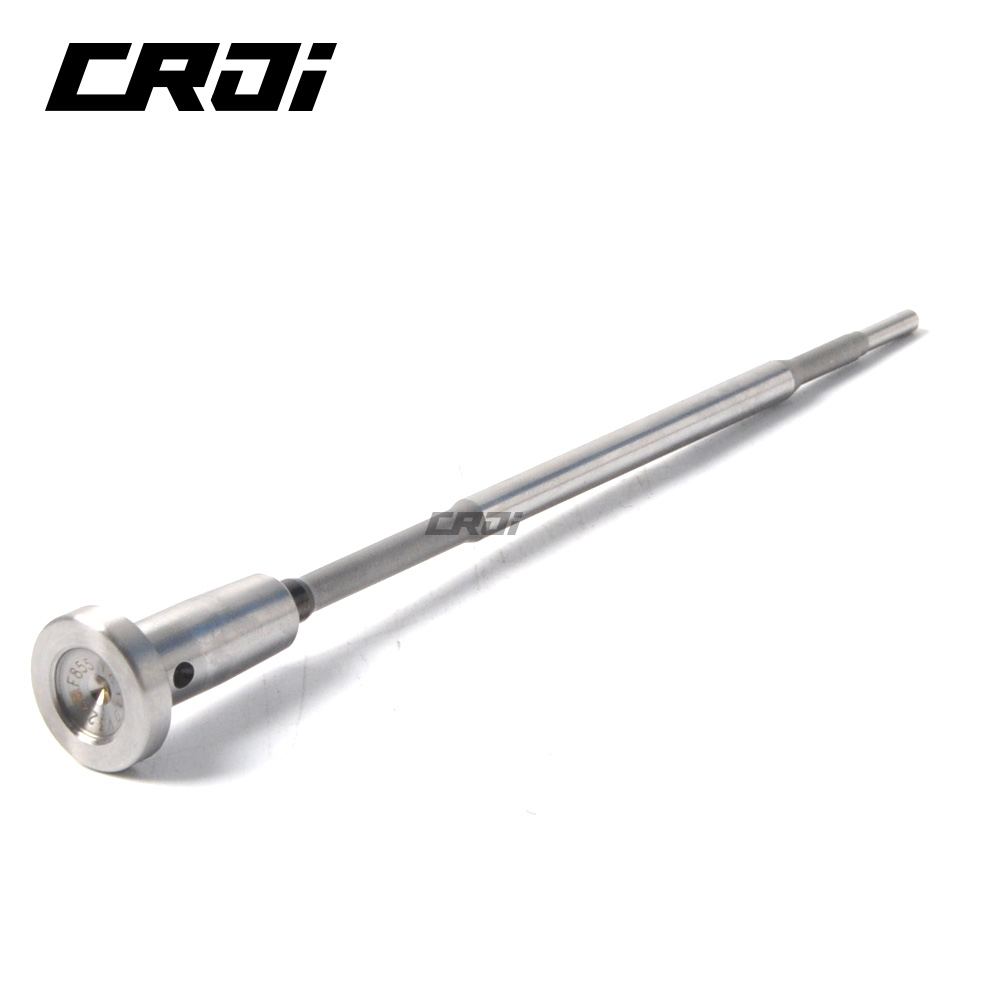

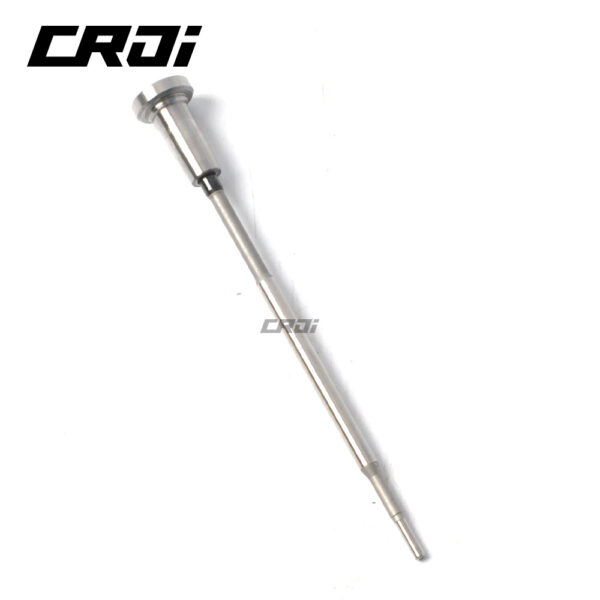

1. F00VC01324 CRDI Injector Valve Set Introduction

1.1. F00VC01324 CRDI Injector Valve Set Basic Information



Title	F00VC01324 CRDI Injector Valve Set China Made New
SKU	G1F2F00VC01324/F20000B2BC01324

1.2. F00VC01324 CRDI Injector Valve Set Application Information

• F00VC01324 CRDI Injector Valve Set Adapted Vehicle Information

Injector Part Number	Car Model	OE Number	OE Number	OE Number	/
0 445 110 082	For ISUZU	8-97262-559-1	8-97262-559-2	8-97262-559-3	/
0 445 110 162	DODGE	05137 297AA	5137 297AA		/
	For MERCEDES-BENZ	647 070 01 87	A 647 070 01 87		/
0 445 110 163	For MERCEDES-BENZ	647 070 01 87	A 647 070 01 87		/
0 445 110 193	For MERCEDES-BENZ	648 070 03 87	A 648 070 03 87	A 648 070 03 87 80	648 070 03 87 80
0 445 110 194	For MERCEDES-BENZ	648 070 03 87	647 070 00 87	A 648 070 03 87	A 647 070 00 87
0 445 110 294	For MERCEDES-BENZ	646 070 12 87	A 646 070 12 87	/	/
0 445 110 295	For MERCEDES-BENZ	646 070 12 87	A 646 070 12 87	/	/



• F00VC01324 CRDI Injector Valve Set Adapted injector Information

Injector Series	Injector Part Number	System Pressure	Re-manufactured Part Number	System Pressure	Universal Number	System Pressure
CRI2.1 (1600 BAR)	0 445 110 162	1600	0 986 435 109	1600	/	/
/	/	/	0 986 435 110	/	/	/
CRI2.1 (1600 BAR)	0 445 110 163	/	0 986 435 109	1600	0 445 110 162	1600
/	/	/	0 986 435 110	1600	/	/
CRI2.1 (1600 BAR)	0 445 110 193	1600	0 986 435 127	1600	/	/
/	/	/	0 986 435 130	/	/	/
CRI2.1 (1600 BAR)	0 445 110 194	1600	0 986 435 127	1600	0 445 110 193	1600
CRI2.1 (1600 BAR)	0 445 110 294	1600	0 986 435 159	1600	/	/
CRI2.1 (1600 BAR)	0 445 110 295	1600	0 986 435 159	1600	0 445 110 294	1600



1.3. F00VC01324 CRDI Injector Valve Set Specifications and Dimensions Parameters

CRDI Injector Valve Set Size： 13 cm*2 cm *2 cm

CRDI Injector Valve Set Box Size：14 cm *3 cm *3 cm

CRDI Injector Valve Set Packing Size：31 cm *12 cm

CRDI Injector Valve Set Net Weight：0.03kg

CRDI Injector Valve Set Gross Weight：0.03kg

CRDI Injector Valve Set Quality：China Made New

CRDI Injector Valve Set MOQ：4PC



2. F00VC01324 CRDI Injector Valve Set Quality Control

• CRDI Injector Valve Set Testing

All parts of the CRDI injector valve set  have undergone precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.

• CRDI Injector Valve Set Inspection

The factory inspection of the CRDI injector valve set is undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same CRDI injector valve set for more than three times for factory inspection, and the CRDI injector valve set ‘s installation and testing environment are progressed in dust-free workshop.

• CRDI Injector Valve Set Installation

When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each CRDI injector valve set meets the factory standards and use standards.



3. F00VC01324 CRDI Injector Valve Set Customized Service

• CRDI Injector Valve Set Customized Service Coverage：Meet the customized needs of OEM manufacturers for valve color and lustre, valve cap groove customization, valve cap lettering ,valve cap logo engraving, valve cap QR code engraving, CRDI injector valve set internal packaging, CRDI injector valve set external packaging and label customization needs.

No.	1	2
Name	Valve Cap Color And Lustre	Valve Cap Color And Lustre
Description	Customized 1000 pieces (white color is optional)	Customized 1000 pieces (purple red color is optional )
No.	3	4
Name	Valve Cap Groove Customization	Valve Cap Lettering, Logo Engraving, QR Code Engraving Customization
No.	5	6
Name	Valve Set Box	Valve Set Box
Description	Rectangle is optional	Cylindrical is optional
No.	7	8
Name	Valve Set Bag	Valve Set  Label 7cm*5cm



• CRDI Injector Valve Set Customized Service Requirements：

The purchase of customized CRDI injector valve set package is no less than 100 pieces.

The purchase of customized CRDI injector valve set groove is no less than 100 pieces.

The purchase of customized CRDI injector valve set is no less than 1000 pieces.

The purchase of customized CRDI injector valve cap engraving is no less than 1000 pieces.

The purchase of customized CRDI injector valve color is no less than between 1000 -10000 pieces.

When the customized pstemucts involve the need of specify logo, the OEM manufacturer is asked to provide trademark authorization and the sample of logo image file.

Once the customized  CRDI injector valve set is sold, it can not be returned or exchanged if there is no quality problems.



4. F00VC01324 CRDI Injector Valve Set Warranty Instructions

• CRDI Injector Valve Set Warranty Conditions and Instructions

It is necessary to provide pictures, videos, or test reports detected by the CRDI injector valve set inspection equipment when the valve set is abnormal during use as evidence to feed back to the salesman.

Abnormal conditions are properly explained such as:1.Smoke, 2. Engine shake, 3. Difficulty starting the engine, 4. Engine noise, 5.Oil leakage and other abnormal conditions.

The above condition may also be affected by other components of the injector. If it is confirmed by our company to be a pstemuct problem, it is within the scope of the subsidy.



• CRDI Injector Valve Set Warranty Coverage

Within 15 days after customer receives the F00VC01324 CRDI injector valve set, if there is a performance failure and the pstemuct has no appearance damage, customer can choose to replace it;

If the F00VC01324 CRDI injector valve set has performance problems during the warranty period (6-12 months), and it is confirmed that it is pstemuct’s problems after being tested, you can contact our salesmen to replace the same model for free;

If the pstemuct is confirmed to be fault-free, the pstemuct will be returned.



5. F00VC01324 CRDI Injector Valve Set Purchase and Delivery.

5.1. F00VC01324 CRDI Injector Valve Set Purchase Payment Terms

Payment Terms： T/T, PayPal, Alipay, WeChat

• Please contact our salesmen for specific payment information.



5.2. F00VC01324 CRDI Injector Valve Set Shipping Ways

Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations out of China’s areas：DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



5.3. F00VC01324 CRDI Injector Valve Set Lead Time

Lead time：Send out within 3 – 7 working days after receiving payment(Except for special pstemucts and special cases).
