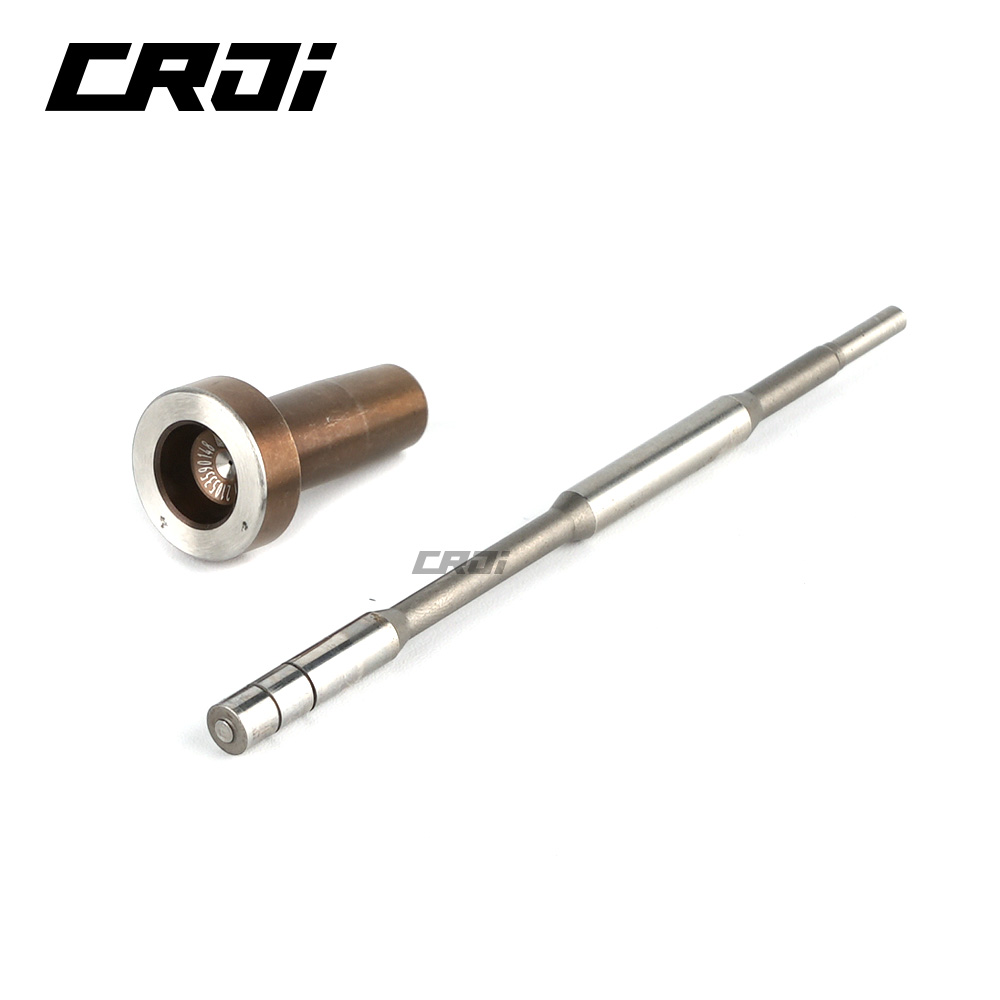

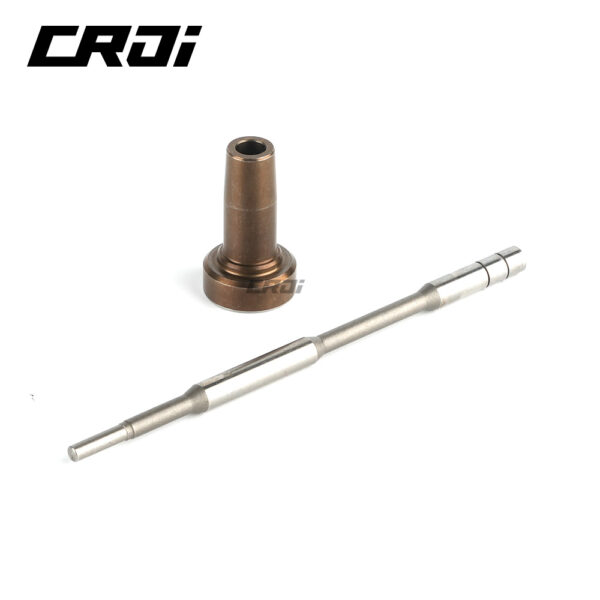

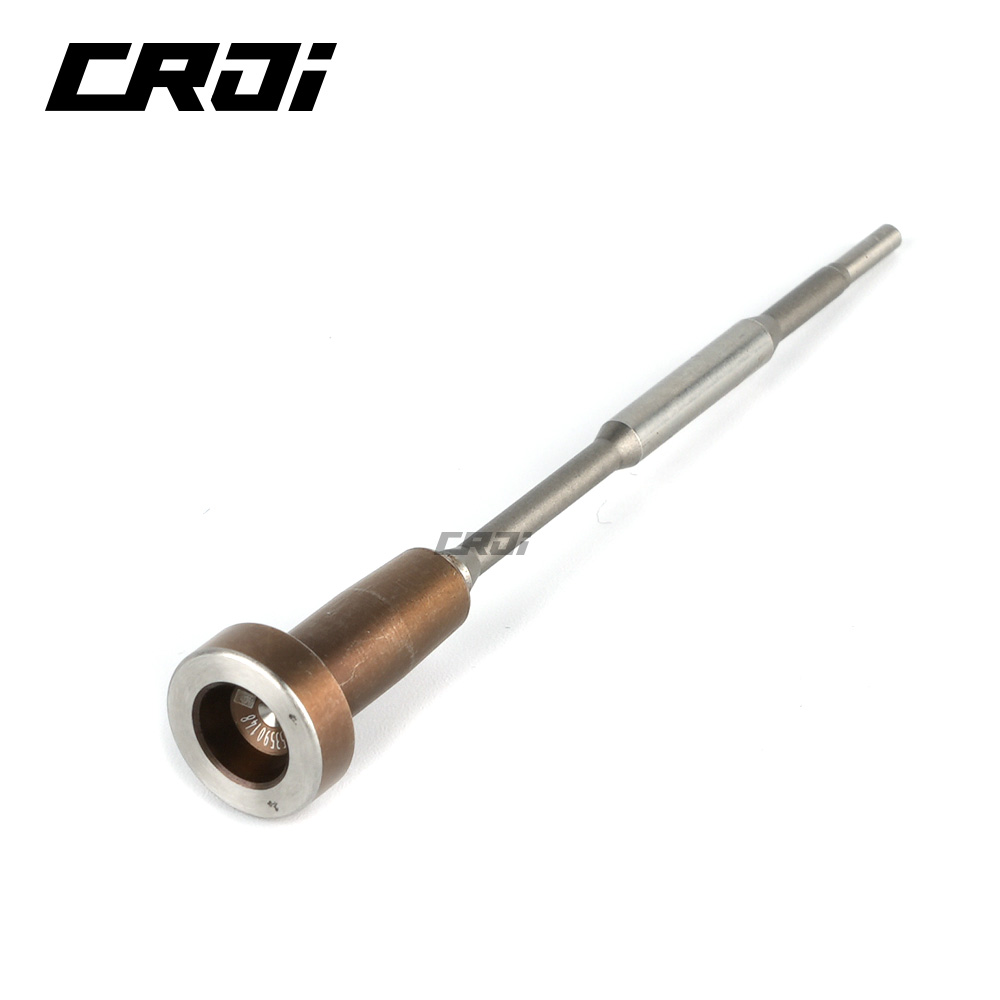

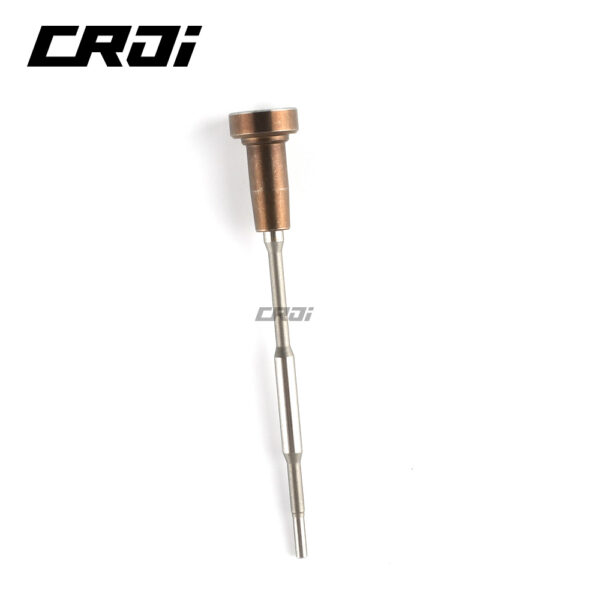

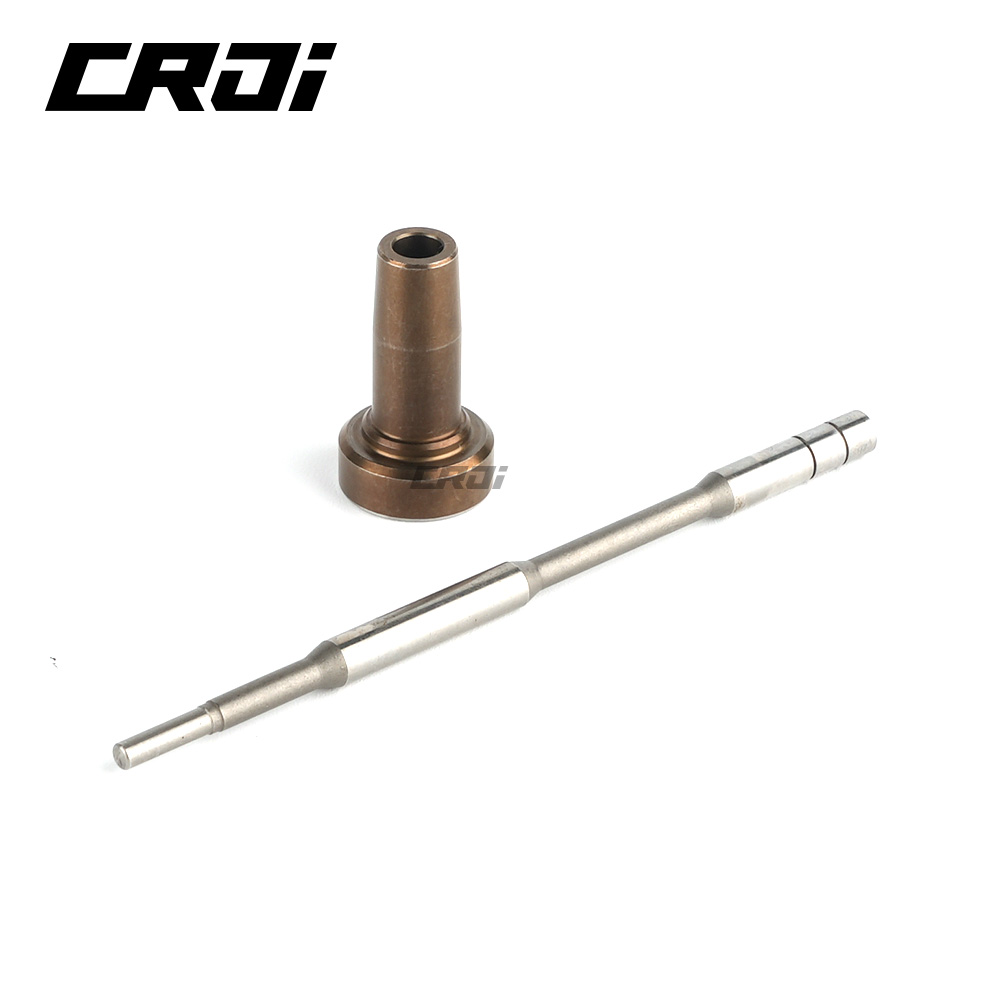

1. F00VC01359 CRDI Injector Valve Set Introduction

1.1. F00VC01359 CRDI Injector Valve Set Basic Information



Title	F00VC01359 CRDI Injector Valve Set China Made New
SKU1	G1S8F00VC01359
SKU2	G1F1F00VC01359
SKU3	F10000B2BC01359
SKU4	G1F2F00VC01359
SKU5	F20000B2BC01359

1.2. F00VC01359 CRDI Injector Valve Set Application Information

• F00VC01359 CRDI Injector Valve Set Adapted Vehicle Information

Injector Part Number	Car Model	OE Number
0 445 110 305	For JMC (JIANGLING)	1112100CAT
0 445 110 313	For FOTON (BEIJING FUTIAN ENVIR.)	J0445110313A7596
0 445 110 332	For GREAT WALL	1112100-E05
0 445 110 335	For JENS & CATTEL	1100200FA040
0 445 110 343	For JENS & CATTEL	1100200FA080
0 445 110 344	/	/
0 445 110 345	For YANGCHAI (YANGZHOU DIESEL ENG)	2014355
0 445 110 346	For QUANCHAI (ANHUI QUANCH. POWER)	4D22E41000
0 445 110 347	For QUANCHAI (ANHUI QUANCH. POWER)	4D22E41000
0 445 110 355	For FAW	1112100-D02
0 445 110 357	/	/
0 445 110 364	/	/
0 445 110 365	/	/
0 445 110 379	/	/
0 445 110 380	For GONOW	1112300-40300
0 445 110 395	For FAW	1112100B35
0 445 110 397	/	/
0 445 110 404	For GREAT WALL	1112100-E06-A1
0 445 110 407	For GREAT WALL	1112100-E06-A1
0 445 110 412	For PIAGGIO	889478
0 445 110 416	/	/
0 445 110 417	For QUANCHAI (ANHUI QUANCH. POWER)	3.40802E+12
0 445 110 427	/	/
0 445 110 445	/	/
0 445 110 446	/	/
0 445 110 448	/	/
0 445 110 449	For QUANCHAI (ANHUI QUANCH. POWER)	4.40852E+12
0 445 110 454	For JMC (JIANGLING)	11112100ABA
0 445 110 462	For GONOW	1112300-40305
0 445 110 465	/	/
0 445 110 466	For JAC (JIANGHUAI AUTOMOBILE)	1100200FA130
0 445 110 481	/	/
0 445 110 509	/	/
0 445 110 512	/	/
0 445 110 515	/	/
0 445 110 516	For YANGCHAI (YANGZHOU DIESEL ENG)	2014994
0 445 110 517	For YANGCHAI (YANGZHOU DIESEL ENG)	2100626
0 445 110 521	/	/
0 445 110 531	For FOTON (BEIJING FUTIAN ENVIR.)	E049332000065
0 445 110 533	/	/
0 445 110 537	/	/
0 445 110 539	For JMC (JIANGLING)	CN1-9K546-A1A
0 445 110 541	For FAW	1112100AB81-0000
0 445 110 549	/	/
0 445 110 623	/	/
0 445 110 628	/	/
0 445 110 629	For JMC (JIANGLING)	1112100ABYB1
0 445 110 630	For JMC (JIANGLING)	DP1-9K546-AA
0 445 110 631	For JMC (JIANGLING)	DP1-9K546-AA
0 445 110 669	/	/
0 445 110 670	For JAC (JIANGHUAI AUTOMOBILE)	1100200FA040BJ-1
0 445 110 672	/	/
0 445 110 691	For FOTON (BEIJING FUTIAN ENVIR.)	E049332000113
0 445 110 710	For JMC (JIANGLING)	1100200FA171



• F00VC01359 CRDI Injector Valve Set Adapted injector Information

Injector Series	Injector Part Number	System Pressure	Re-manufactured Part Number	System Pressure	Universal Number	System Pressure
CRI2-14	0 445 110 305	1400	0 986 435 231	/	/	/
CRI2-14	0 445 110 313	1400	/	/	/	/
CRI2-14	0 445 110 332	/	/	/	/	/
CRI2-14	0 445 110 335	1400	/	/	0 445 110 512	1400
CRI2-14	0 445 110 343	1400	/	/	0 445 110 412	1400
CRI2-14	0 445 110 344	/	/	/	/	/
CRI2-14	0 445 110 345	1400	/	/	0 445 110 344	/
CRI2-14	0 445 110 346	/	/	/	0 445 110 347	/
CRI2-14	0 445 110 347	/	/	/	0 445 110 346	/
CRI2-14	0 445 110 355	1400	/	/	/	/
CRI2-14	0 445 110 357	/	/	/	/	/
CRI2-14	0 445 110 364	1400	/	/	0 445 110 365	/
CRI2-14	0 445 110 365	/	/	/	0 445 110 364	1400
CRI2-14	0 445 110 379	1400	/	/	/	/
CRI2-14	0 445 110 380	1400	/	/	0 445 110 379	1400
CRI2-14	0 445 110 395	/	/	/	/	/
CRI2-14	0 445 110 397	1400	/	/	/	/
CRI2-14	0 445 110 404	/	/	/	0 445 110 407	1400
CRI2-14	0 445 110 407	1400	/	/	0 445 110 404	/
CRI2-14	0 445 110 412	1400	/	/	0 445 110 343	1400
CRI2-14	0 445 110 416	1400	/	/	0 445 110 417	1400
CRI2-14	0 445 110 417	1400	/	/	0 445 110 416	1400
CRI2-14	0 445 110 427	/	/	/	0 445 110 426	1400
CRI2-14	0 445 110 445	1400	/	/	0 445 110 446	1400
CRI2-14	0 445 110 446	1400	/	/	0 445 110 445	1400
CRI2-14	0 445 110 448	1400	/	/	0 445 110 449	1400
CRI2-14	0 445 110 449	1400	/	/	0 445 110 448	1400
CRI2-16	0 445 110 454	1600	/	/	/	/
CRI2-14	0 445 110 462	1400	/	/	0 445 110 481	1350
CRI2-16	0 445 110 465	1600	/	/	0 445 110 466	1600
CRI2-16	0 445 110 466	1600	/	/	0 445 110 465	1600
CRI1-13	0 445 110 481	1350	/	/	0 445 110 462	1400
CRI2-16	0 445 110 509	/	/	/	/	/
CRI2-14	0 445 110 512	1400	/	/	0 445 110 335	1400
CRI2-16	0 445 110 515	1600	/	/	/	/
CRI2-16	0 445 110 516	1600	/	/	/	/
CRI2-16	0 445 110 517	1600	/	/	/	/
CRI2-14	0 445 110 521	1400	/	/	/	/
CRI2-16	0 445 110 531	1600	/	/	/	/
CRI2-16 OHW	0 445 110 533	1600	/	/	/	/
CRI2-16	0 445 110 537	1600	/	/	/	/
CRI2-16	0 445 110 539	1600	/	/	0 445 110 538	1600
CRI2-16	0 445 110 541	1,600	/	/	/	/
CRI2-16	0 445 110 549	/	/	/	0 445 110 548	/
CRI2-16	0 445 110 623	1600	/	/	/	/
CRI1-16	0 445 110 628	1600	0 986 435 334	/	0 445 110 629	1600
CRI1-16	0 445 110 629	1600	0 986 435 334	/	0 445 110 628	1600
CRI1-16	0 445 110 630	1600	0 986 435 326	/	0 445 110 631	1600
CRI1-16	0 445 110 631	1600	0 986 435 326	/	0 445 110 630	1600
CRI1-13	0 445 110 669	/	/	/	0 445 110 670	1400
CRI2-14	0 445 110 670	1400	/	/	0 445 110 669	/
CRI1-16	0 445 110 672	1600	/	/	/	/
CRI1-16	0 445 110 691	1600	/	/	0 445 111 016	/
CRI1-16	0 445 110 710	1600	/	/	/	/



1.3. F00VC01359 CRDI Injector Valve Set Specifications and Dimensions Parameters

CRDI Injector Valve Set Size： 13 cm*2 cm *2 cm

CRDI Injector Valve Set Box Size：14 cm *3 cm *3 cm

CRDI Injector Valve Set Packing Size：31 cm *12 cm

CRDI Injector Valve Set Net Weight：0.03kg

CRDI Injector Valve Set Gross Weight：0.03kg

CRDI Injector Valve Set Quality：China Made New

CRDI Injector Valve Set MOQ：4PC



2. F00VC01359 CRDI Injector Valve Set Quality Control

• CRDI Injector Valve Set Testing

All parts of the CRDI injector valve set  have undergone precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.

• CRDI Injector Valve Set Inspection

The factory inspection of the CRDI injector valve set is undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same CRDI injector valve set for more than three times for factory inspection, and the CRDI injector valve set ‘s installation and testing environment are progressed in dust-free workshop.

• CRDI Injector Valve Set Installation

When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each CRDI injector valve set meets the factory standards and use standards.



3. F00VC01359 CRDI Injector Valve Set Customized Service

• CRDI Injector Valve Set Customized Service Coverage：Meet the customized needs of OEM manufacturers for valve color and lustre, valve cap groove customization, valve cap lettering ,valve cap logo engraving, valve cap QR code engraving, CRDI injector valve set internal packaging, CRDI injector valve set external packaging and label customization needs.



No.	1	2
Name	Valve Cap Color And Lustre	Valve Cap Color And Lustre
Description	Customized 1000 pieces (white color is optional)	Customized 1000 pieces (purple red color is optional )
No.	3	4
Name	Valve Cap Groove Customization	Valve Cap Lettering, Logo Engraving, QR Code Engraving Customization
No.	5	6
Name	Valve Set Box	Valve Set Box
Description	Rectangle is optional	Cylindrical is optional
No.	7	8
Name	Valve Set Bag	Valve Set  Label 7cm*5cm



• CRDI Injector Valve Set Customized Service Requirements：

The purchase of customized CRDI injector valve set package is no less than 100 pieces.

The purchase of customized CRDI injector valve set groove is no less than 100 pieces.

The purchase of customized CRDI injector valve set is no less than 1000 pieces.

The purchase of customized CRDI injector valve cap engraving is no less than 1000 pieces.

The purchase of customized CRDI injector valve color is no less than between 1000 -10000 pieces.

When the customized pstemucts involve the need of specify logo, the OEM manufacturer is asked to provide trademark authorization and the sample of logo image file.

Once the customized  CRDI injector valve set is sold, it can not be returned or exchanged if there is no quality problems.



4. F00VC01359 CRDI Injector Valve Set Warranty Instructions

• CRDI Injector Valve Set Warranty Conditions and Instructions

It is necessary to provide pictures, videos, or test reports detected by the CRDI injector valve set inspection equipment when the valve set is abnormal during use as evidence to feed back to the salesman.

Abnormal conditions are properly explained such as:1.Smoke, 2. Engine shake, 3. Difficulty starting the engine, 4. Engine noise, 5.Oil leakage and other abnormal conditions.

The above condition may also be affected by other components of the injector. If it is confirmed by our company to be a pstemuct problem, it is within the scope of the subsidy.



• CRDI Injector Valve Set Warranty Coverage

Within 15 days after customer receives the F00VC01359 CRDI injector valve set, if there is a performance failure and the pstemuct has no appearance damage, customer can choose to replace it;

If the F00VC01359 CRDI injector valve set has performance problems during the warranty period (6-12 months), and it is confirmed that it is pstemuct’s problems after being tested, you can contact our salesmen to replace the same model for free;

If the pstemuct is confirmed to be fault-free, the pstemuct will be returned.



5. F00VC01359 CRDI Injector Valve Set Purchase and Delivery.

5.1. F00VC01359 CRDI Injector Valve Set Purchase Payment Terms

Payment Terms： T/T, PayPal, Alipay, WeChat

• Please contact our salesmen for specific payment information.



5.2. F00VC01359 CRDI Injector Valve Set Shipping Ways

Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations out of China’s areas：DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



5.3. F00VC01359 CRDI Injector Valve Set Lead Time

Lead time：Send out within 3 – 7 working days after receiving payment(Except for special pstemucts and special cases).
